Getting Started
Sym is a tool for creating and manipulating symbolic content. By symbolic content, we mean both mathematical expressions and other symbolic content (source code is one example). Almost anything that can be represented as a tree of symbols can potentially be content in Sym. The topics in the Getting Started section of the documentation cover installing Sym and starting to use Sym.
Documents
Every document has two main components; the document content that you create and the libraries that define the objects and functionality available in the document. Documents will nearly always have a reference to least one library. Without any libraries loaded there would be virtually no functionality available in the document.
Adding and Removing References
References determine which libraries are included in a document. The libraries included in the document define the list of objects and much of the functionality that can be used to create and manipulate expressions in the current document. For example, if you add a reference to the Calc.eql library to a document, then the Calc library along with the Trig and Math libraries will be loaded in the document and there will be definitions and functionality for objects like limits, derivatives, and integrals in current document.

Getting Started
Sym is a tool for creating and manipulating symbolic content. By symbolic content, we mean both mathematical expressions and other symbolic content (source code is one example). Almost anything that can be represented as a tree of symbols can potentially be content in Sym. The topics in the Getting Started section of the documentation cover installing Sym and starting to use Sym.
- Installing Sym
  Sym includes a Windows installer. The installation requirements and info about the install destination are listed below.
- Using Sym
  To get started using Sym, you need to understand the basics of how documents and content are created and edited.
- Documents
  Every document has two main components; the document content that you create and the libraries that define the objects and functionality available in the document. Documents will nearly always have a reference to least one library. Without any libraries loaded there would be virtually no functionality available in the document.
  - Creating a New Document
    Documents are created, opened, and saved in the standard way from the File menu, or by using standard keystrokes such as Ctrl + S. The following section describes the procedures for creating a new document.
  - Libraries and References
    The functionality in any document depends upon which libraries are referenced. A reference is an entry shown in the Document Explorer that indicates that the specified library is loaded into the current document. Libraries serve as a container for definitions of objects, commands and functionality.
  - Adding and Removing References
    References determine which libraries are included in a document. The libraries included in the document define the list of objects and much of the functionality that can be used to create and manipulate expressions in the current document. For example, if you add a reference to the Calc.eql library to a document, then the Calc library along with the Trig and Math libraries will be loaded in the document and there will be definitions and functionality for objects like limits, derivatives, and integrals in current document.
  - Online Documents
    Documents that are located online can be opened in Sym. These documents can be edited like any other document, but you must specify a directory and file name when you first save a document that was opened from an online location.
  - Customizing the Screen Layout
    The locations of the windows that make up the Sym application can be customizable by the user. Windows can be undocked and left floating, or re-docked in the same or a new location. The window and document configuration is saved when the application is closed. When the application is restarted, the last configuration will be restored.
  - Creating and Editing Content
    Content is contained in modules and can consist of both text and expressions. The content of a document is primarily contained in Document Modules.
- Commands
  Commands are used both to construct and manipulate expressions. Typically, single-character keystrokes are used to invoke commands. For example, the "s" keystroke normally runs the Simplify command on the highlighted expression.

Adding and Removing References

References determine which libraries are included in a document. The libraries included in the document define the list of objects and much of the functionality that can be used to create and manipulate expressions in the current document. For example, if you add a reference to the Calc.eql library to a document, then the Calc library along with the Trig and Math libraries will be loaded in the document and there will be definitions and functionality for objects like limits, derivatives, and integrals in current document.

References are added to the documents so that libraries that contain the object definitions and functionality required by the document are available in the document. To add a reference to a document:

If the Document Explorer isn't already open, then open it by selecting View > Document Explorer (Shift + F2) from the menu bar.
Right-click the References item and select Edit references… from the context menu.

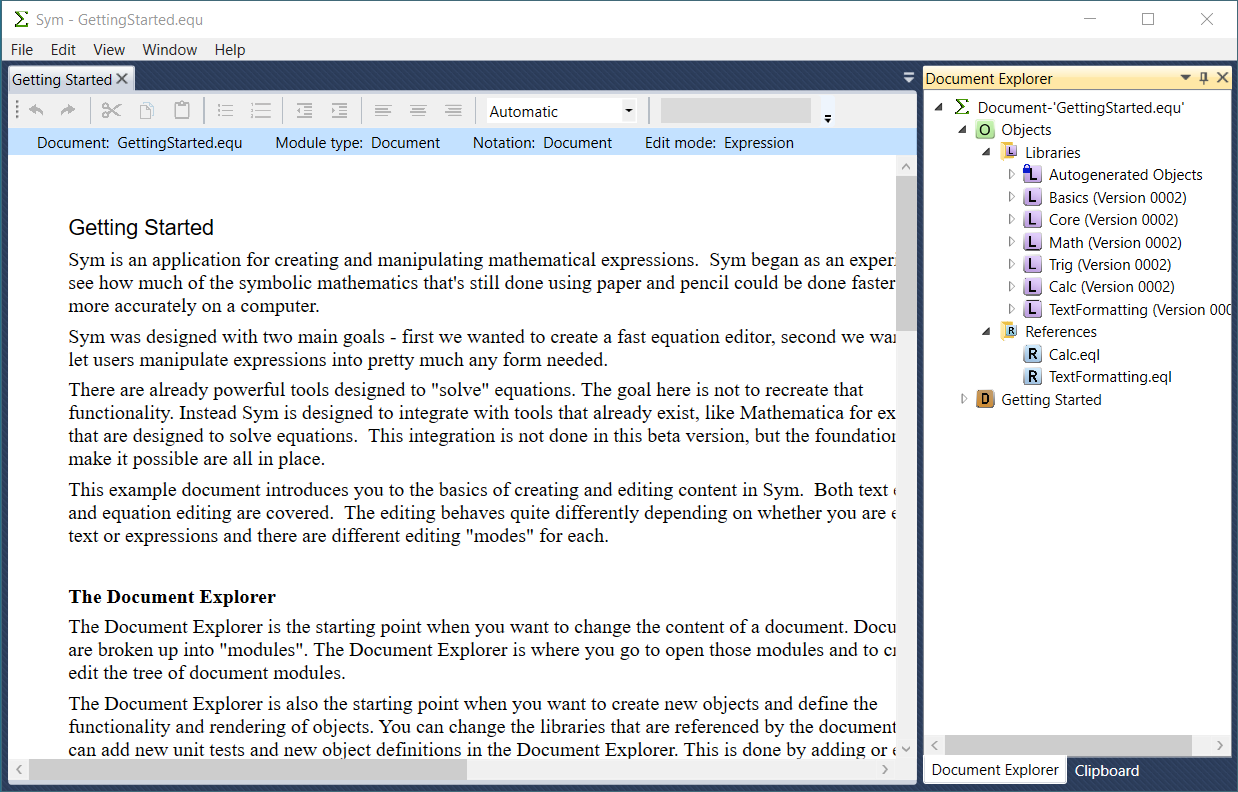

The Edit References dialog will open. A list of locations is show in the dialog and any libraries that are already referenced are shown with a green check in front of them. You can add or remove libraries from the list that is currently selected. For this example, the Calc.eql library and the TextFormatting.eql libraries were selected. Note that because both the Calc.eql library and the TextFormatting.eql library reference other libraries, adding these references causes six libraries to be loaded (in addition to the Autogenerated Objects library which is always included). All libraries loaded into the current document are listed under Libraries in the Document Explorer.
The version can be set for each location used in the document. To select the version for a location, right-click on the location and select Select version.... The Select Location Version dialog is shown with a list of versions available for the selected location. Select a version from the list and select Ok. For each location, only a single version can be selected even if more than one library from the location is referenced.
